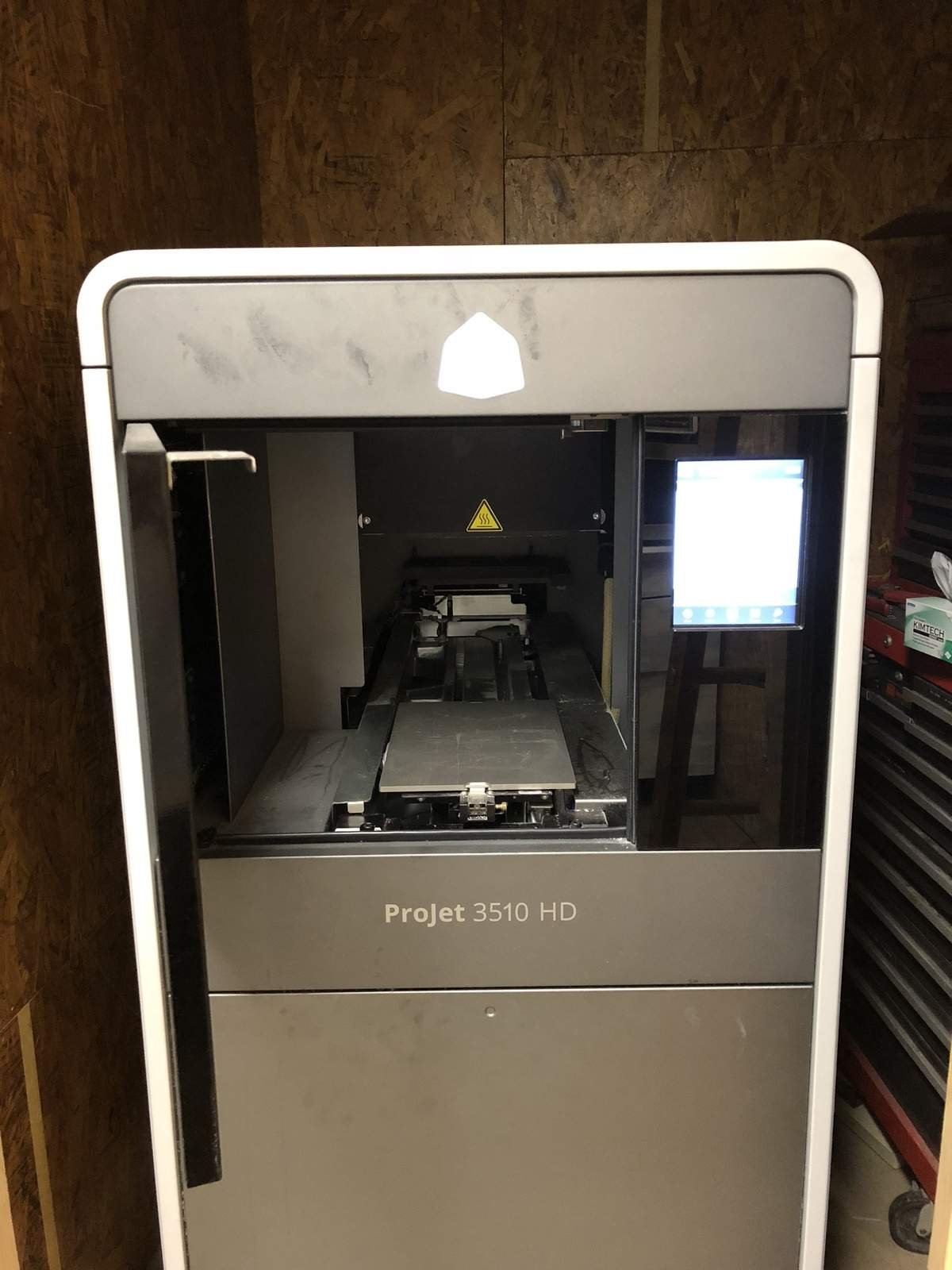

The ProJet 3510 HD prints precision, durable plastic parts ideal for functional testing, design communication, rapid manufacturing, rapid tooling and more. With a choice in materials and selectable print resolutions, this office-friendly, easy-to-use 3D printer is packed with features that help you maximize your return on investment (ROI).
Asking $45,000.

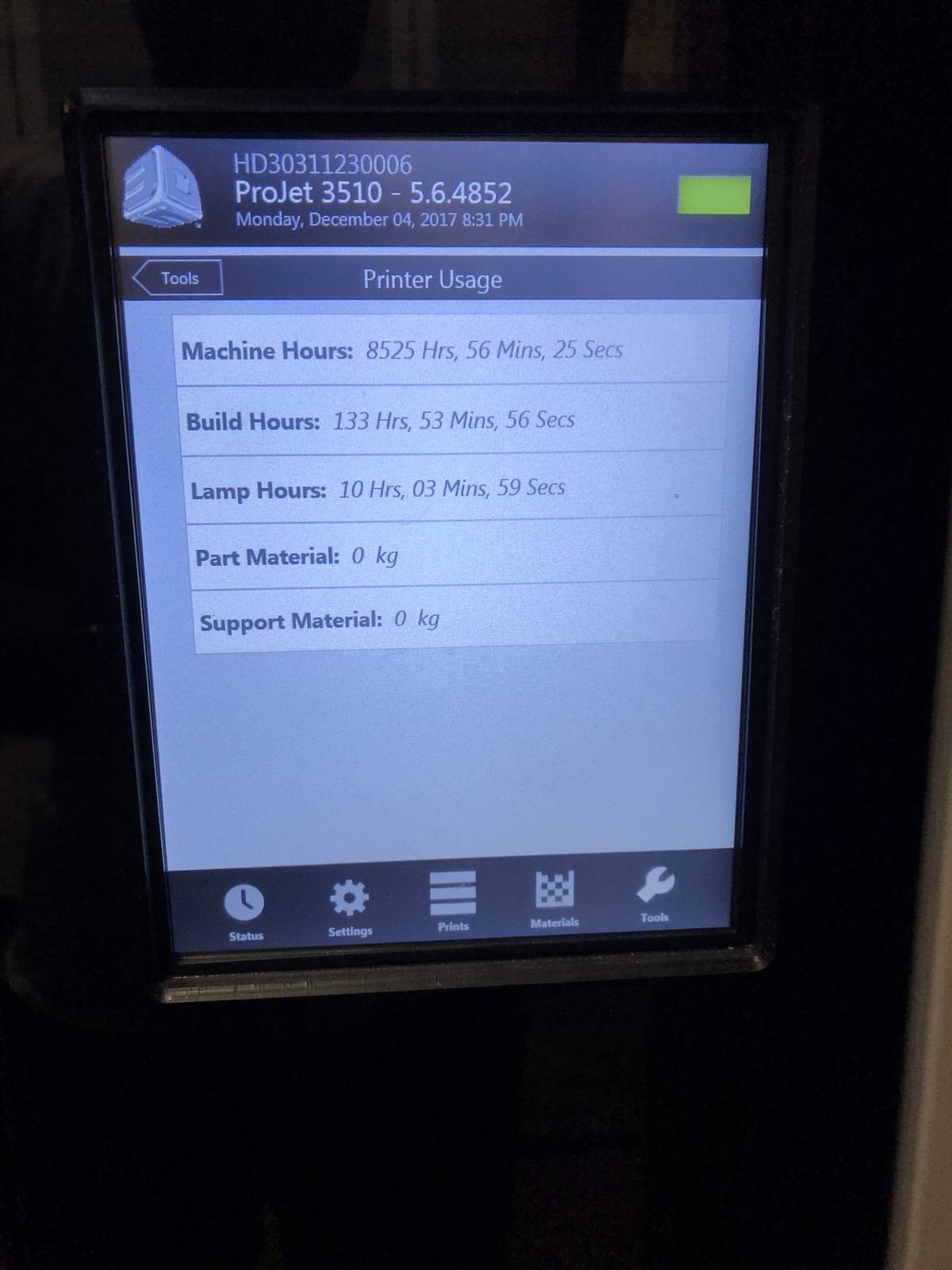

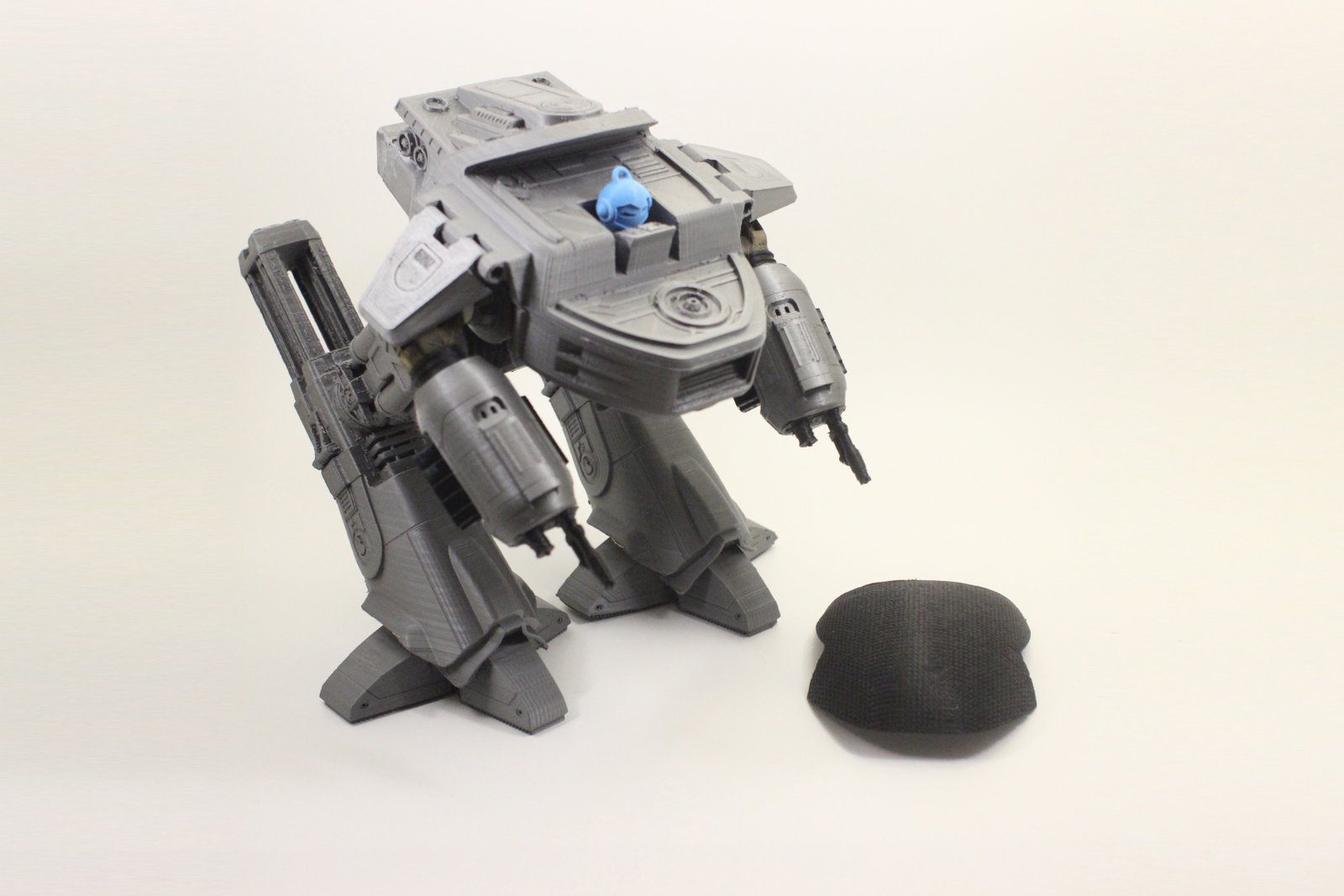

This machine has very low build and lamp hours and has worked well for printing a wide variety of parts.
Specifications
Printing Modes:
HD - High Definition
UHD - Ultra High Definition
Net Build Volume (xyz):
11.75 x 7.3 x 8" (298 x 185 x 203 mm)
5 x 7 x 6" (127 x 178 x 152 mm)
Resolution:
HD Mode: 375 x 375 x 790 DPI (xyz); 32u layers
UHD Mode: 750 x 750 x 890 DPI (xyz); 29u layers
Accuracy (typical): 0.001-0.002 inch per inch (0.025-0.05 mm per 25.4 mm) of part dimension. Accuracy may vary depending on build parameters, part geometry and size, part orientation, and post-processing.
E-mail Notice Capability: Yes
Tablet/Smartphone Connectivity: Yes
5-Year Printhead Warranty: Standard
Build Materials:
VisiJet M3-X
VisiJet M3 Black
VisiJet M3 Crystal
VisiJet M3 Proplast
VisiJet M3 Navy
VisiJet M3 Techplast
VisiJet M3 Procast
Support Material: VisiJet S300
Material Packaging:
Build and support materials: In-clean 4.41 lbs (2 kg) bottles (machine holds up to 2 with auto-switching)
Electrical: 100-127 VAC, 50/60Hz, single-phase, 15A; 200-240* VAC, 50Hz, single-phase, 10A
Dimensions (WxDxH):
3D Printer Crated: 32.5 x 56.25 x 68.5 in (826 x 1429 x 1740 mm)
3D Printer Uncrated: 29.5 x 47 x 59.5 in (749 x 1194 x 1511 mm)
Weight:
3D Printer Crated: 955 lbs, 434 kg
3D Printer Uncrated: 711 lbs, 323 kg
ProJet Accelerator Software:
Easy build job set-up, submission and job queue management; Automatic part placement and build optimization tools; Part stacking and nesting capability; Extensive part editing tools; Automatic support generation; Job statistics reporting tools.
Print3D App: Remote monitoring and control from tablet, computers and smartphones.
Network Compatibility: Network ready with 10/100 Ethernet interface.
Client Hardware Recommendation: 1.8 GHz with 1GB RAM (OpenGL support 64 mb video RAM) or higher
Client Operating System: Windows XP Professional, Windows Vista, Windows 7
Input Data File Formats Supported: STL and SLC
Operating Temperature Range: 64-82 *F (18-28 *C)
Noise: < 65 dBa estimated (at medium fan setting)
Certifications: CE
